Luminarias de led para alumbrado publico

  • YH-LDA150W

YH-LDA150W

150W LED Street Light
  • Parameters:

    Model No : YH-LDA150W

    Watts(W) : 150W

    Input Voltage(V) : AC100-277V 50/60Hz

    Dimension(mm) : L553*W260*H243mm

    Color Accuracy(CRI) : >80

    Light Output(lm) : 18000lm

    Lumens per Watt(Lm/W) : 120lm/W

    LED Model No : SMD3030

    Light Color(K) : 2700~6500K

    Beam Angle(Degree) : 155*80°(Polarized light 30° )

    Operational Temperature Range : -20℃~+45℃

    Power Factor(PF) : PF>0.9

    Rating Life : 5 Years Warranty

    Certification : CE, RoHS, IP65

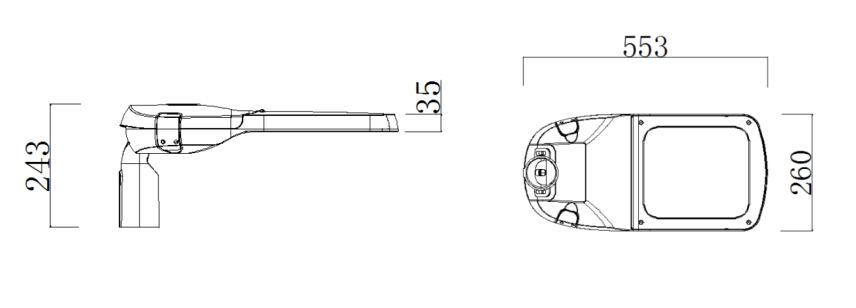

    Dimensions(mm):


    Installation ways:


    Luminance Intensity Distribution:



    Applications:
